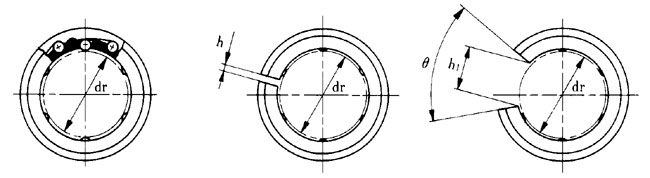

Modelli: Tipo
standard (es.: KB5), Tipo regolabile (es.: KB5
AJ),
Tipo aperto (es.: KB5 OP)
|

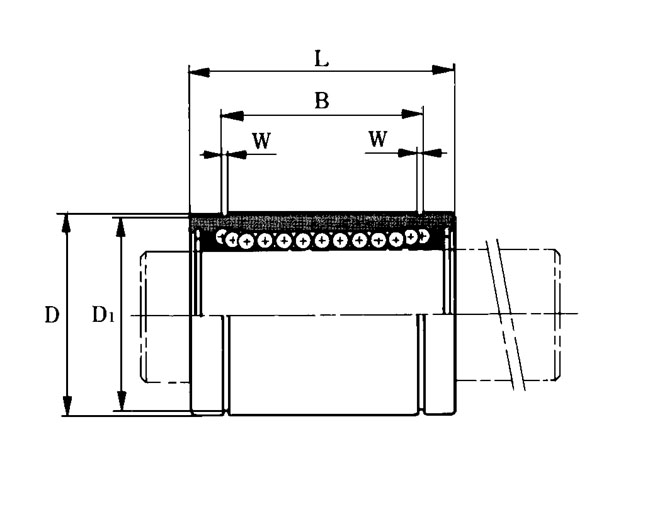

| Modello |
Dimensioni
principali [mm] |
Eccen-
tricità
(max) |
Capacità di
carico [N] |
|
N. Di circuiti
di sfere |
Diametro
interno |
Diametro esterno |
Lunghezza |
|
| dr |
 |
|
toll. |
|
D |
|
|
toll. |
|
L |
|
|
toll. |
|
B |
|
|
toll. |
|
W |
D1 |
h |
h1 |
q |
c |
c0 |
KB5
KB5 AJ |
4 |
5 |
+0.008
0 |
12 |
0
-0.008 |
22 |
0
-0.20 |
14.5 |
0
-0.20 |
1.1 |
11.5 |
1 |
― |
― |
0.012 |
210 |
270 |
KB8
KB8 AJ |
4 |
8 |
16 |
25 |
16.5 |
1.1 |
15.2 |
1 |
― |
― |
270 |
410 |
kB10
KB10 AJ |
4 |
10 |
19 |
0
-0.009 |
29 |
22 |
1.3 |
18 |
1.5 |
― |
― |
380 |
470 |
kB12
KB12 AJ
KB12 OP |
4 |
12 |
22 |
32 |
22.9 |
1.3 |
21 |
1.5 |
7.5 |
78° |
520 |
790 |
kB16
KB16 AJ
KB16 OP |
5 |
16 |
+0.009
-0.001 |
26 |
36 |
24.9 |
1.3 |
24.9 |
1.5 |
10 |
78° |
590 |
910 |
kB20
KB20 AJ
KB20 OP |
5 |
20 |
32 |
0
-0.011 |
45 |
31.5 |
1.6 |
30.3 |
2 |
10 |
60° |
0.015 |
880 |
1400 |
kB25
KB25 AJ
KB25 OP |
6 |
25 |
+0.011
-0.001 |
40 |
58 |
0
-0.30 |
44.1 |
0
-0.30 |
1.85 |
37.5 |
2 |
12.5 |
60° |
1000 |
1600 |
kB30
KB30 AJ
KB30 OP |
6 |
30 |
47 |
68 |
52.1 |
1.85 |
44.5 |
2 |
12.5 |
60° |
1600 |
2800 |
kB40
KB40 AJ
KB40 OP |
6 |
40 |
+0.013
-0.002 |
62 |
0
-0.013 |
80 |
60.6 |
2.15 |
59 |
3 |
16.8 |
60° |
0.017 |
2200 |
4000 |
kB50
KB50 AJ
KB50 OP |
6 |
50 |
75 |
100 |
77.6 |
2.65 |
72 |
3 |
21 |
60° |
3900 |
8100 |
kB60
KB60 AJ
KB60 OP |
6 |
60 |
90 |
0
-0.015 |
125 |
0
-0.40 |
101.7 |
0
-0.40 |
3.15 |
86.5 |
3 |
27.2 |
60° |
0.020 |
4800 |
10200 |
|
|
