Guide serie MTP

Serie
EA/LEA

Serie ER/LER

Serie MTPU ER/SER

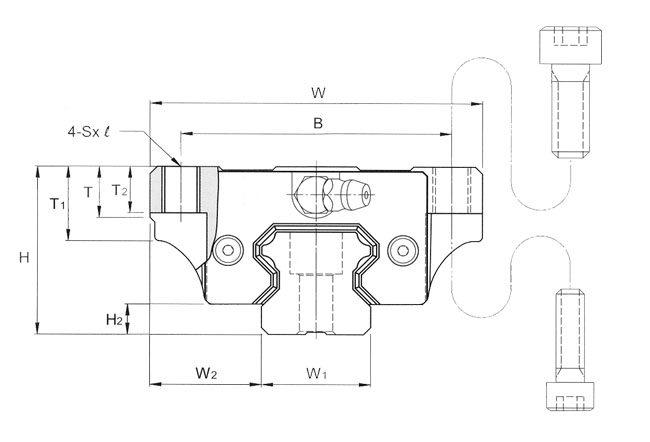

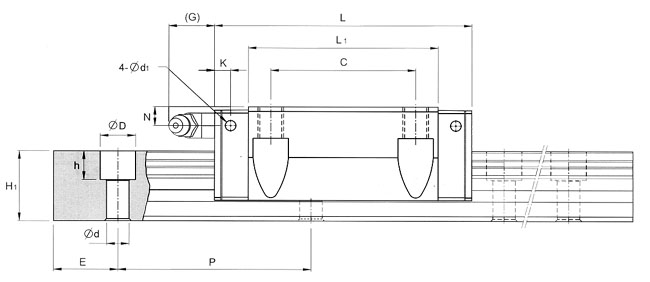

Modello Dimensioni di montaggio [mm] Dimensioni del cursore [mm]
H W L W2 H2 B C S X ℓ L1 T T1 T2 N G K d1 Ingrassatore
MTP 15 EA
24 47 56.3 16 4.2 38 30 M5x7 39.3 7 11 7 4.3 7 3.2 3.3 G-M4
MTP 20 EA
30 63 72.9 21.5 5 53 40 M6x10 51.3 7 10 10 5 12 5.8 3.3 G-M6
MTP 20 LEA
30 63 88.8 21.5 5 53 40 M6x10 67.2 7 10 10 5 12 5.8 3.3 G-M6
MTP 25 EA
36 70 81.6 23.5 6.5 57 45 M8x10 59 11 16 10 6 12 5.8 3.3 G-M6
MTP 25 LEA
36 70 100.6 23.5 6.5 57 45 M8x10 78 11 16 10 6 12 5.8 3.3 G-M6
MTP 30 EA
42 90 97 31 8 72 52 M10x10 71.4 11 18 10 7 12 6.5 3.3 G-M6
MTP 30 LEA
42 90 119.2 31 8 72 52 M10x10 93.6 11 18 10 7 12 6.5 3.3 G-M6
MTP 35 EA
48 100 111.2 33 9.5 82 62 M10x13 81 13 21 13 8 11.5 8.6 3.3 G-M6
MTP 35 LEA
48 100 136.6 33 9.5 82 62 M10x13 106.4 13 21 13 8 11.5 8.6 3.3 G-M6
MTP 45 EA
60 120 137.7 37.5 10 100 80 M12x15 102.5 13 25 15 10 13.5 10.6 3.3 G-PT1/8
MTP 45 LEA
60 120 169.5 37.5 10 100 80 M12x15 134.3 13 25 15 10 13.5 10.6 3.3 G-PT1/8
MTP 55 EA
70 140 165.5 43.5 13 116 95 M14x17 119.5 19 32 17 11 13.5 8.6 3.3 G-PT1/8
MTP 55 LEA
70 140 199.5 43.5 13 116 95 M14x17 157.5 19 32 17 11 13.5 8.6 3.3 G-PT1/8
MTP 65 EA
90 170 199 53.5 15 142 110 M16x23 149 21.5 37 23 19 13.5 8.6 3.3 G-PT1/8
MTP 65 LEA
90 170 253 53.5 15 142 110 M16x23 203 21.5 37 23 19 13.5 8.6 3.3 G-PT1/8

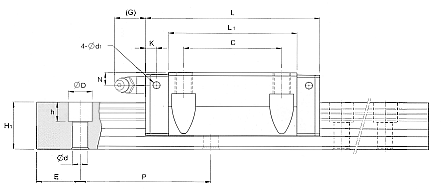

Modello Dimensioni del binario [mm] Carichi [kN] Momento  Statico [knm] Pesi
W1 H1 P E D x h x d Dinamico
C		 Statico
c0		 MA MB MC Cursore
kg		 Binario
kg/m
MTP 15 EA
15 15 60 20 7.5x5.3x4.5  11.8 18.9 0.12 0.12 0.14 0.18 1.5
MTP 20 EA
20 18 60 20 9.5x8.5x6 19.2 29.5 0.23 0.23 0.29 0.4 2.4
MTP 20 LEA
20 18 60 20 9.5x8.5x6 23.3 39.3 0.39 0.39 0.38 0.52 2.4
MTP 25 EA
23 22 60 20 11x9x7 28.1 42.4 0.39 0.39 0.48 0.62 3.4
MTP 25 LEA
23 22 60 20 11x9x7 34.4 56.6 0.67 0.67 0.63 0.82 3.4
MTP 30 EA
28 26 80 20 14x12x9 39.2 57.8 0.62 0.62 0.79 1.09 4.8
MTP 30 LEA
28 26 80 20 14x12x9 47.9 77.0 1.07 1.07 1.05 1.43 4.8
MTP 35 EA
34 29 80 20 14x12x9 52.0 75.5 0.93 0.93 1.25 1.61 6.6
MTP 35 LEA
34 29 80 20 14x12x9 63.6 100.6 1.60 1.60 1.67 2.11 6.6
MTP 45 EA
45 38 105 22.5 20x17x14 83.8 117.9 1.81 1.81 2.57 2.98 11.5
MTP 45 LEA
45 38 105 22.5 20x17x14 102.4 157.3 3.13 3.13 3.43 3.9 11.5
MTP 55 EA
53 44 120 30 23X20X16 123.6 169.8 3.13 3.13 4.50 4.17 15.5
MTP 55 LEA
53 44 120 30 23X20X16 151.1 226.4 5.40 5.40 6.00 5.49 15.5
MTP 65 EA
63 53 150 35 26X22X18 198.8 265.3 6.11 6.11 8.36 8.73 21.9
MTP 65 LEA
63 53 150 35 26X22X18 253.5 375.9 11.84 11.84 11.84 11.89 21.9
